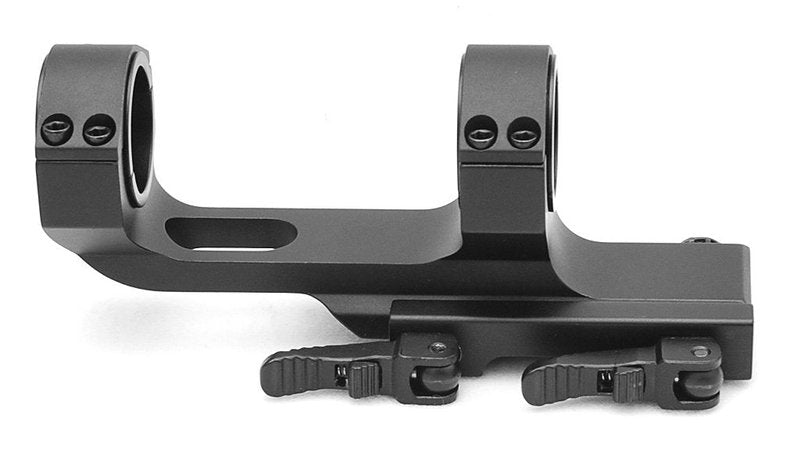

Flat Top Offset One Piece QD Scope Mount with Quick Release Cam Locks 1913 Picatinny Rails

Brand: Hammers

Color: Anodized black

Features:

• Install in seconds with finger adjustable quick release cam locks
• Offset design for better eye relief position
• Works with both 30mm and 1inch main tube rifle scopes
• Machined from aircraft grade aluminum alloy
• Fits onto flat top Picatinny rail

Details: A very solid and heavy duty offset ring mount to install magnified optics scope for easier eye relief setup. Very helpful when mounting a scope with longer eyepiece tube, especially ones with illuminated reticles

The QD cam locks can be finger adjusted when needed. With the cam lever at unlock position, pull up and rotate the star wheel on the opposite end of the clamping bolt to adjust

Ring Size: 30mm (1inch metal size inserts included)
Centerline Height - 40mm
Machined from extruded aluminum alloy 6061
Anodized black matte finish
Clamp attachment - two finger adjustable quick release cam locks
Height from top of rail to bottom of cradle: 1'
Overall height 2.50'
Overall length 5.30'
Inner space between the rings 64mm (2.52inch)
Ring width: 16mm(0.63inch)
Recoil lug: 2 cross-slot square bolt shafts

Package Dimensions: 7.2 x 3.7 x 2.9 inches
