Frankford Arsenal Cartridge Overall Length Gage with Clamps for Reloading, Gunsmithing

Brand: Frankford Arsenal

Color: blue, white

Features:

• SPECS: Clips to a cleaning rod of ¼” diameter or less
• EASE OF USE: Use a cleaning rod and 2 clamps to measure off overall cartridge length or seating depth
• VERSATILITY: Works on all rifles

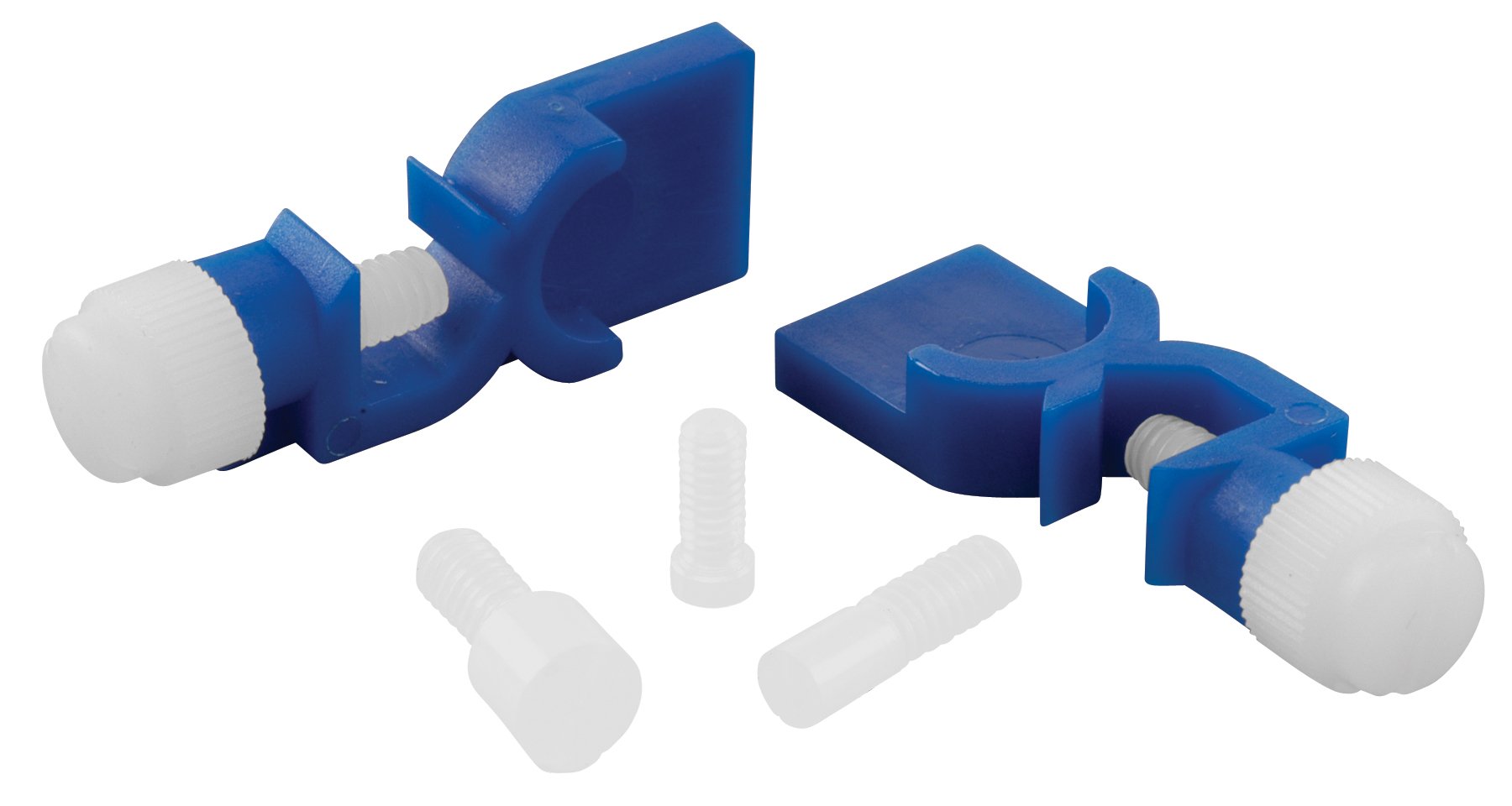

• INCLUDES: 2 clamps

Release Date: 19-11-2024

model number: 965887

Part Number: 965887

Details: If you have a cleaning rod and a set of calipers, you can now determine the optimum OAL for any bullet in less than two minutes. This simple kit consists of two clamps that easily attach to any cleaning rod, 1/4″ in diameter, or less. Simply install the appropriate size tip on the end of your cleaning rod, insert the cleaning rod to the bolt face, install one clamp, remove the bolt and drop in a bullet (projectile only) into the chamber. Hold the bullet against the rifling with a pencil, touch the bullet tip with the cleaning rod tip and install the other clamp. Now measure the inside distance between the two clamps with calipers and record, or use as a gauge to check the seating depth set-up during your reloading sequence.

EAN: 0661120658870

Package Dimensions: 7.2 x 3.4 x 0.7 inches
